Big Bore Transmission Case for the VESLA.5

To accommodate more considerable Big Bore engine power, we have added the following benefits to this new case:

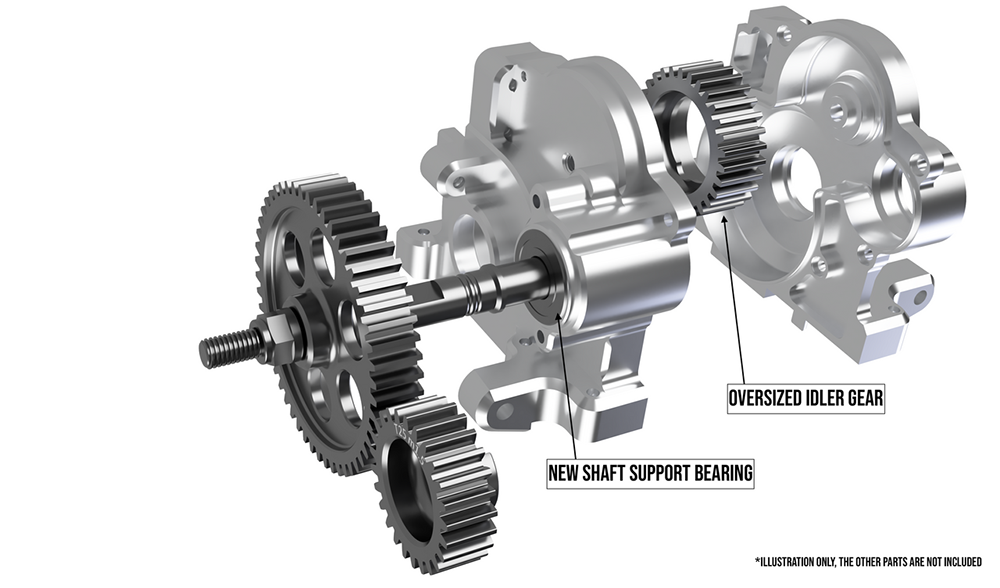

• Massive Idler gear for strength required - New Idler Gear
• A stronger layshaft that utilizes the additional support bearing for stability and smoother power transfer (optional). Gas or  Electric
• Secondary, larger bearing to support the layshaft
• New high-ratio Gas 51/25 gearing set-up suited for 46-50cc Builds (Optional) -  51/25 gearing set-up

• New high-ratio Electric 51/25 gearing set up.  Electric
• Direct fitment using the current Taylor layshaft (Secondary support bearing is not supported)
• Supports both gas and electric

What is Included:

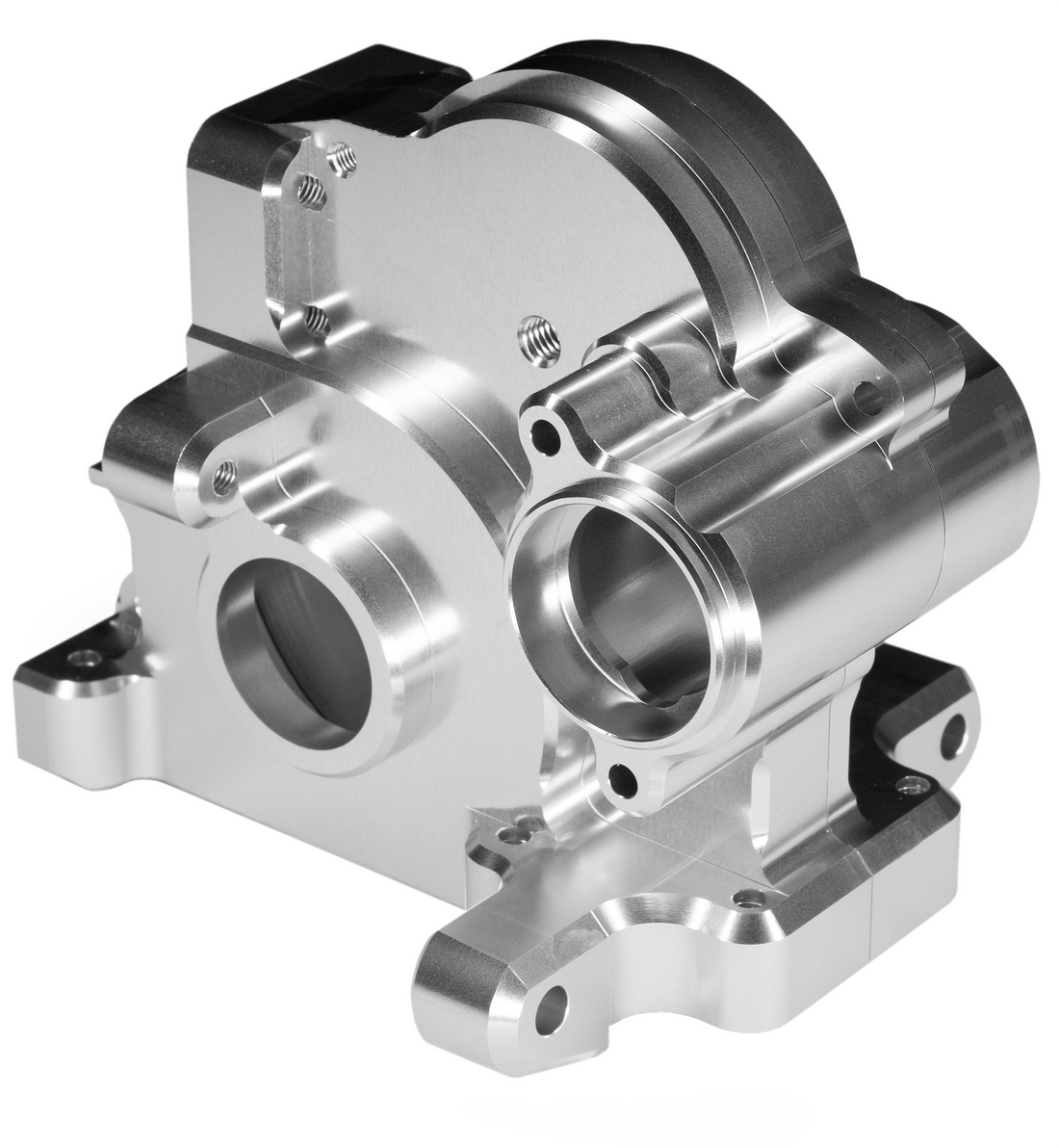

• Transmission Case
• Bearings
• Hardware
• 1 x Shaft Sleeve
• 1 x Spacer for Electric Layshaft

Note: It is highly recommended that you use the hardened gears only. If you own our hardened gears already, you will need the new Idler gear to work - New Idler Gear.

Download Set-Up Diagram Here

IMPORTANT: For your exhaust pipe to clear the transmission case for smaller bore engines, you’d need a curved-up exhaust header like Taylor RC VESLA side mount pipe
